Horizontal vacuum debinding gas press sintering furnace 先進陶瓷

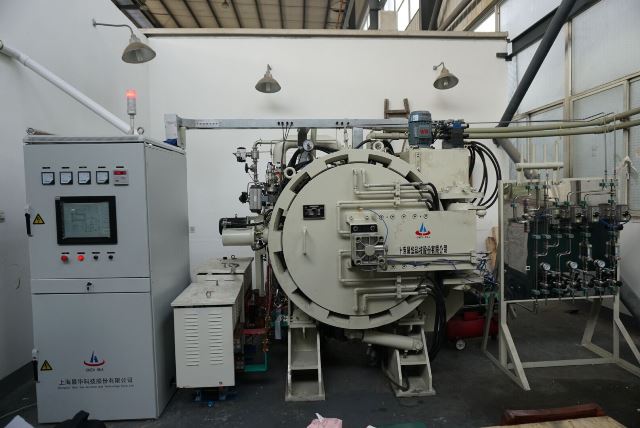

Horizontal vacuum debinding gas press sintering furnace

Share with：

Online inquiry and order

details

Application:

The furnace is the way of periodic operation, mainly used for high temperature debinding sintering

on cemented carbide and ceramics under the condition of the translation between minus and plus gas pressure.

The furnace is horizontal structure, which is designed and made according to the standards of pressure vessel.

Heating zone is divided into two zones, isostatic pressing graphite is used as heating element.

The furnace conduces to enhancing the sintering density and raising the mechanical property of material.

Also fit for the sintering of fluorescent powder.

PLC safe mornitoring system:

Main technical parameters:

Model: ZTQ-`120-16

1 Rated power: 120KW

2 Max. temperature: 1600℃

3 Working zone:250X250X400mm

4 Final vacuum: 1Pa

5 Max. sintering pressure: 6MPa
