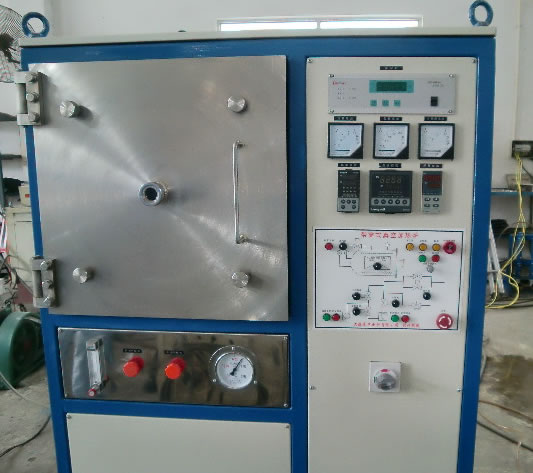

Vacuum chamber resistance heating furnace

Share with：

Online inquiry and order

details

Application:

The furnace uses nickel chromium alloy wire as the heating element, is vacuum heat treatment of laboratory

with the heating inside the chamber. Furnace body and electrical control cabinet make up a integrated

horizontal structure, Furnace door is open laterally. It is applicable for metal material to do tempering,

annealing, brazing, sintering, degassing treatment etc. under the condition of high vacuum.Meanwhile,

it also applys to vacuum heat treatment of metal compound.

Features:

1. The furnace is square horizontal structure, very easy to load and unload.

2. All of operations can be done in the front of furnace, simple to work it.

3. A integrated structure, occupies small space, saving space.

Main technical parameters:

Model:ZR-12-11

1.Rate power: 12KW

2.Rated temperature: 1100℃（protective atmosphere）

3.Max. heating zone: Φ120×200㎜

4.Ultimate vacuum: 5×10^-4 Pa

5.Pressure rise rate: ≤2.0 Pa/h

6.Power supply: 380V/50Hz

7.Protective gas: argon or nitrogen

8.Max. Inflating pressure:＜0.03MPa

9.Temperature accuracy: ±1℃
