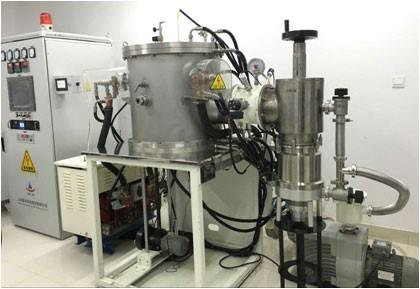

Big size tungsten mesh sintering furnace

Share with：

Online inquiry and order

details

Application：

The furnace is the vertical configuration with the bottom loading. Apply to the high temperature sintering

treatment of tungsten, tantalum and molybdenum refractory metals or inorganic non-metallic.

Features:

The furnace uses tungsten mesh as heating element, comprises furnace shell, heating element, thermal insulation

shield, vacuum system and electrical control system.

1 Double-layer furnace shell with built-in water cooling jacket, stainless steel inner layer with the bright polish,

outer layer is carbon steel with the rust-proof treatment or stainless steel.

2 Heating element made of tungsten mesh or tantalum belt, round metallic thermal radiation shield, easy to clear

chamber after the sintering.

3 Control mode of PLC plus touching screen, automatic operation, simple to operate it.

4 Control system owns light-sound alarm and automatic protective function on water failure, over-temperature

and over-current etc., operating safely and reliably.

Main Technical Parameters:

Model: ZW-145-18

1 Max. temperature:1800℃

2 Power: 145KW

3 Working size: ?350X400mm

4 Final vacuum: 6X10-5Pa

5 Leak rate:3Pa/H

6 Temperature uniformity: ±5oC
