Aluminum nitride substrate(powder) sintering furnace 先進陶瓷

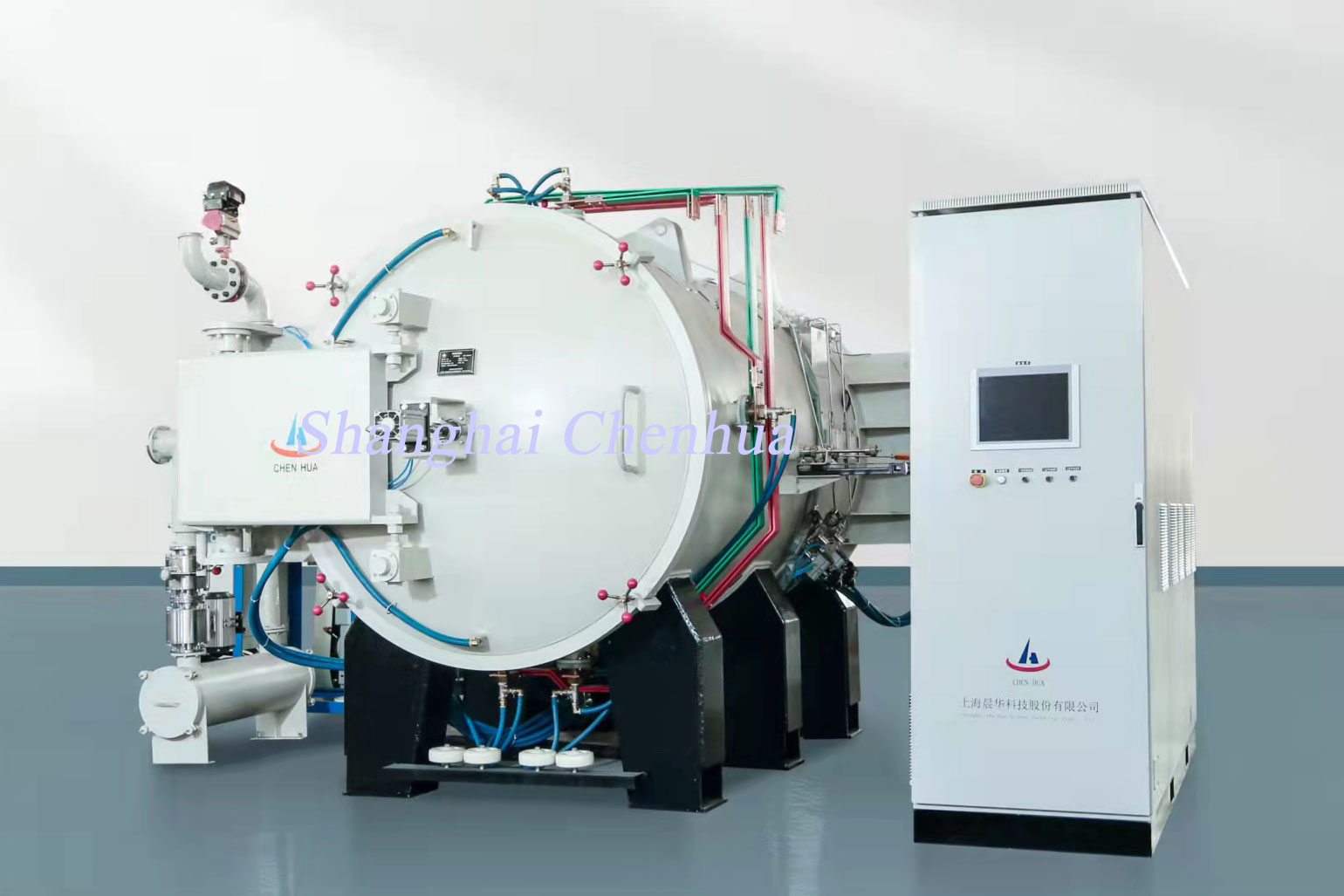

Aluminum nitride substrate (powder) sintering furnace

Share with：

Online inquiry and order

details

Use

The furnace mainly used for sintering aluminum nitride substrate or powder.

Main configuration:

1. double layer shell design with built-in water cooling jacket.

2. Heating element of isostatic graphite rod, electric resistance heating.

3 Nitrogen or argon protective atmosphere.

4. Automatic control mode of PLC plus touching screen.

5. A fast cooling blower equipped with the end of furnace accelerates the cooling of furnace.

Main technical parameters:

1.Max. temperature：2200℃,

2.Working temperature：2000℃

3. Final vacuum:0.7Pa
4.Working zone：400X400X1200mm（WXHXD）,

500X500X1500mm,600X600X1800mm

Furnace can be customized on your request.
